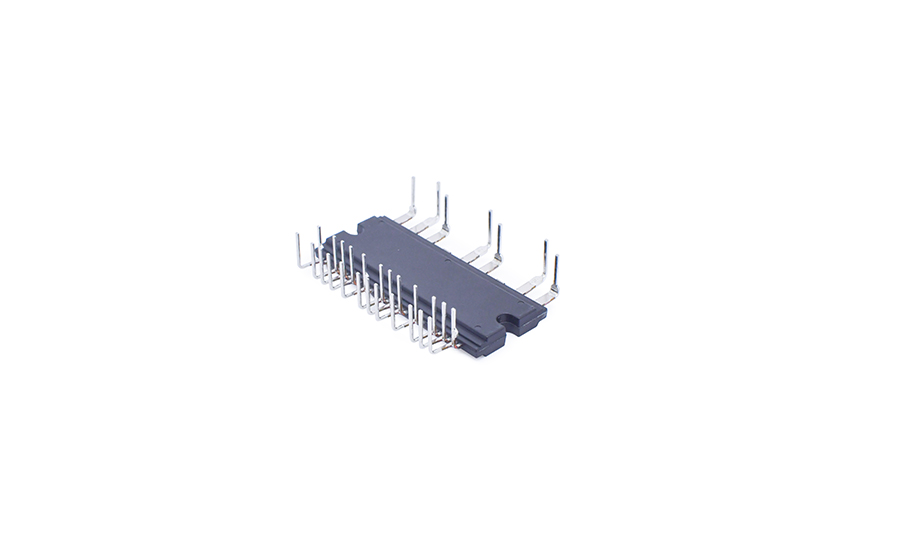

  • DIP33(IGBT模块)

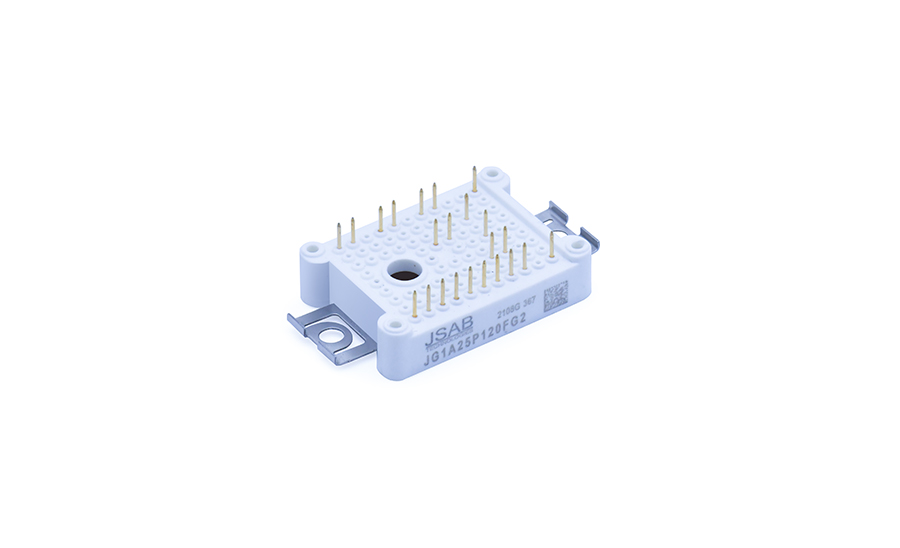

  • EasyPIM-1B(IGBT模块)

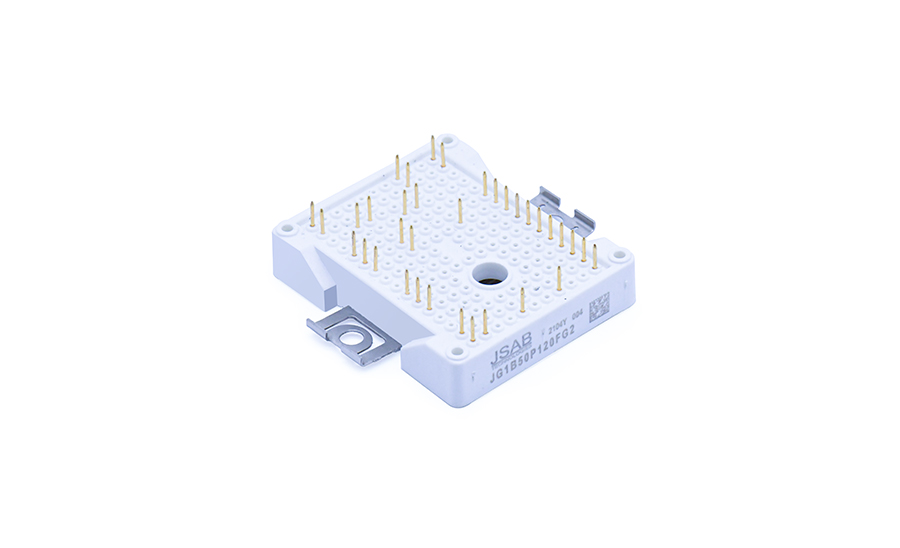

  • EasyPIM-2B(IGBT模块)
  • EconoPIM-2(IGBT模块)

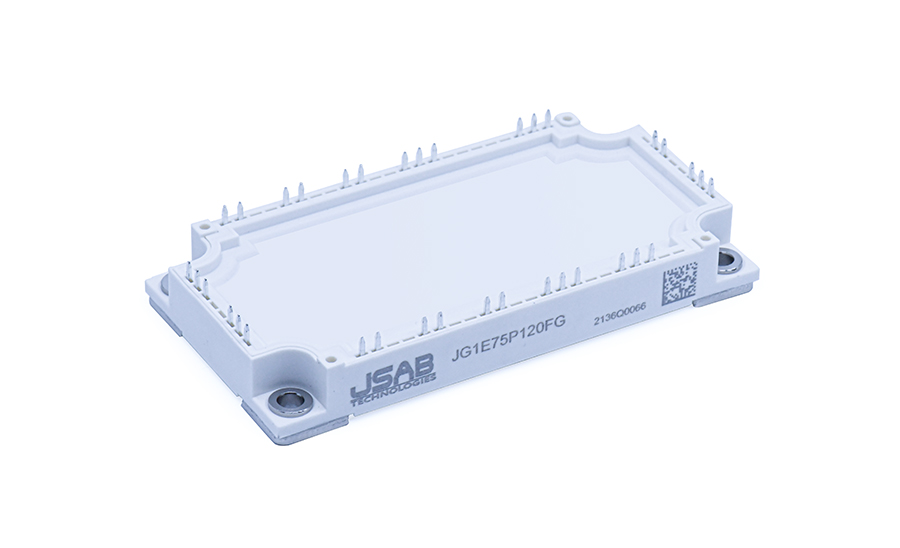

  • EconoPIM-3(IGBT模块)

IGBT模块

  • 低饱和导通压降

  • 低开关损耗

  • 高可靠性

  • 高功率密度

安建科技推出的IGBT采用先进的沟槽-场截止型(Trench-FS)结构,由安建科技自主研发并掌握相关知识产权。

采用”Taiko”薄片晶圆加工技术,创新的精细沟槽结构,降低芯片导通及开关能量损耗,通过改进芯片元胞设计,保证IGBT器件的耐用性以及高的短路电流能力,独特的耐压结构设计,保证器件的高可靠性。

安建已量产 1200V-25A EasyPIM™ 1B IGBT 模块及 1200V-50A EasyPIM™ 2B IGBT 模块,能够与国外最先进的第七代IGBT模块实现Pin-to-Pin替代。

ProductPackage
Compatible
Housing
BVCESICVGE(th)VcesatConfigurationDatasheet

Max.Typ.Max.

AVVVV
筛选筛选筛选筛选筛选筛选筛选筛选筛选筛选重置筛选
JG1A30P60EG21A
EasyPIM™ 1B60030571.61.9PIM
JG1A25P120FG21AEasyPIM™ 1B1200255.57.51.852.2PIM
JG1B25P120FG21BEasyPIM™ 2B1200255.57.51.852.2PIM
JG1B35P120FG21BEasyPIM™ 2B1200355.57.51.652PIM
JG1B50P120FG21BEasyPIM™ 2B1200505.57.51.72PIM
JG1D25P120FG21DEconoPIM™ 21200255.57.51.852.2PIM
JG1D35P120FG21DEconoPIM™ 21200355.57.51.652PIM
JG1D50P120FG21DEconoPIM™ 21200505.57.51.72PIM
JG2D75P120FG2DEconoPIM™ 21200755.57.51.652PIM
JG3D25P120FG23DEconoPIM™ 21200255.57.51.852.2PIM
JG3D40P120FG23DEconoPIM™ 21200405.57.51.752.1PIM
JG1E75P120FG1EEconoPIM™ 31200755.57.51.652PIM
JG1E100P120FG1EEconoPIM™ 312001005.57.51.652PIM
JG2E150P120FM2EEconoPIM™ 3120015056.81.751.95PIM
JG3E50P120FG23EEconoPIM™ 31200505.57.51.72PIM
JG3E75P120FG3EEconoPIM™ 31200755.57.51.652PIM
JG1F100F120FG1F34 mm12001005.57.51.652Dual
JG1F100F120FG31F34 mm12001005.57.51.652Dual
JG1F100F120HG
1F34 mm12001005.57.51.92.3Dual
JG1F150F120FG31F34 mm12001505.57.522.4Dual
JG1G150F120FG1G62 mm12001505.57.51.652Dual
JG1G200F120FG1G62 mm12002005.57.51.652Dual
JG1G300F120FG1G62 mm12003005.57.51.652Dual
JG1G400F120FM1G62 mm1200400571.92.3Dual
JG1H100S120FG1HEconoPACK™ 312001005.57.51.652Six-Pack
JG1H200S120FM1HEconoPACK™ 31200200571.92.3Six-Pack
JG1M25P120FG21MEasyPIM - 21200255.57.51.852.2PIM
JG1N20S65EG21NEasyPACK 750
65020571.72Six-Pack
JG1O400S65FM1OHP165040056.81.51.8Six-Pack
JG1P820S75FM1PHPD75082056.81.31.7Six-Pack
JG1Q450F120FM1QEcondual 3120045056.81.852.15Dual
JG1Q600F120FM1QEcondual 3120060056.81.852.15Dual

备注:EasyPIM™1B、EasyPIM™ 2B、EconoPIM™ 2、EconoPIM™ 3均为英飞凌公司注册的商标。

*
*
*
*
*
